FIREBREAK FOAM Technical Data Sheet
Technical Data Sheet

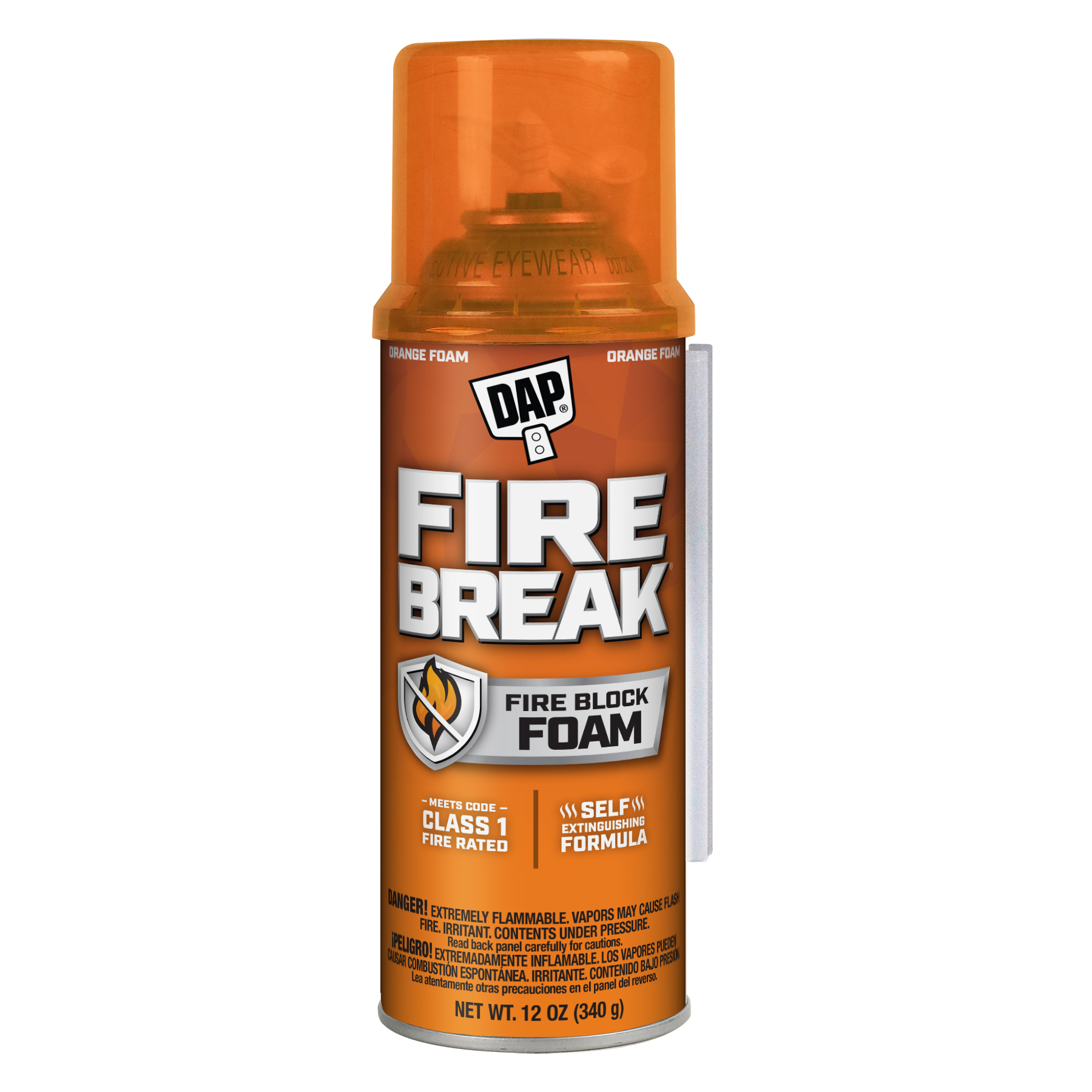

FIRE BREAK FIRE BLOCK FOAM SEALANT
1 / 4
1 / 4
FEATURES & BENEFITS
Class 1 fire-retardant foam that self-extinguishes to help stop fire spread.
Includes stop-and-restart adapter and extra straw for multiple uses.
Reduces oxygen flow to help contain fires within walls and ceilings.
Best applied between 60°F and 100°F for optimal performance.
Suitable for use in residential, commercial, and industrial settings.
Bright orange color for quick and easy post-application identification.
Performs exceptionally in UL-175, UL94 V-0, and modified ASTM E-814 tests.

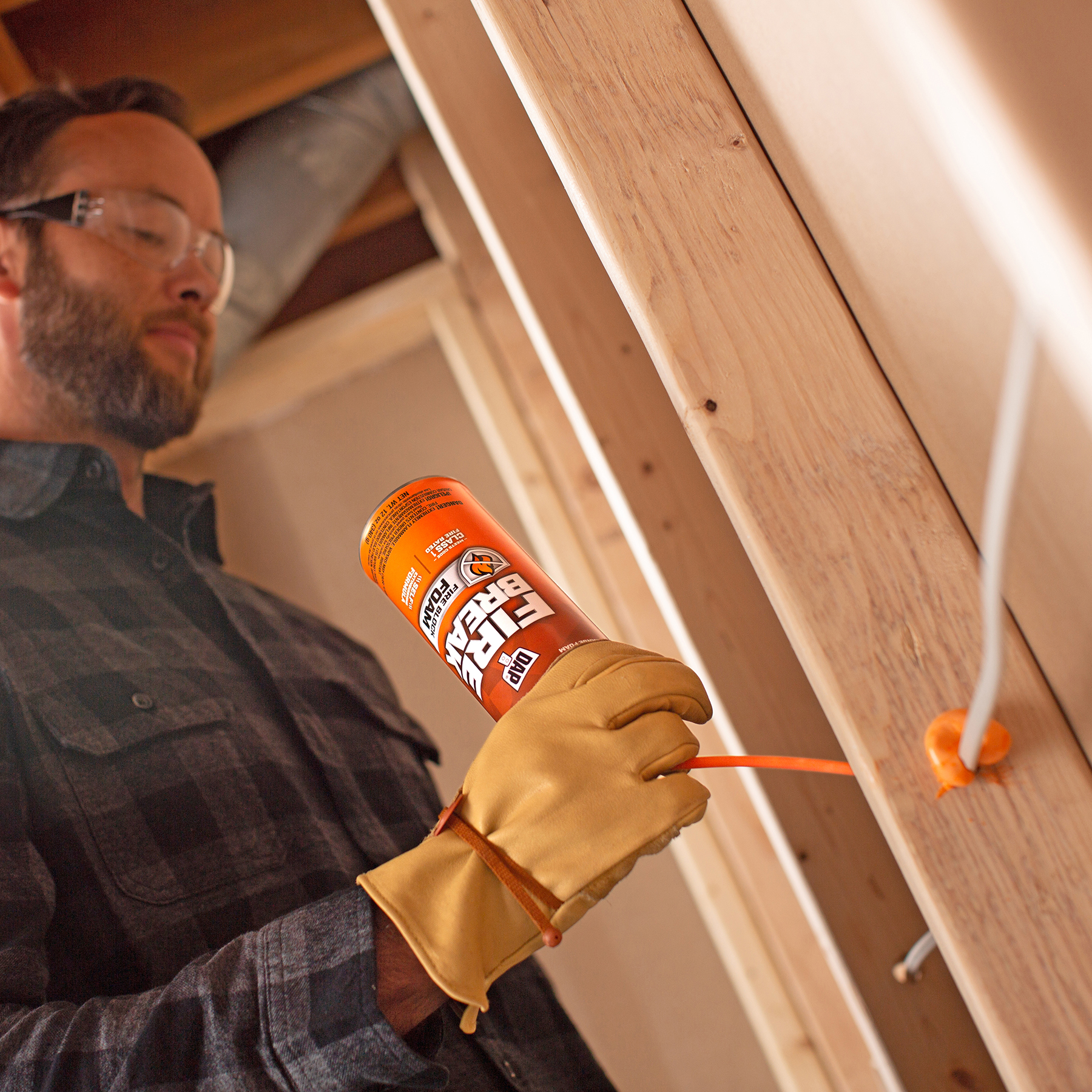

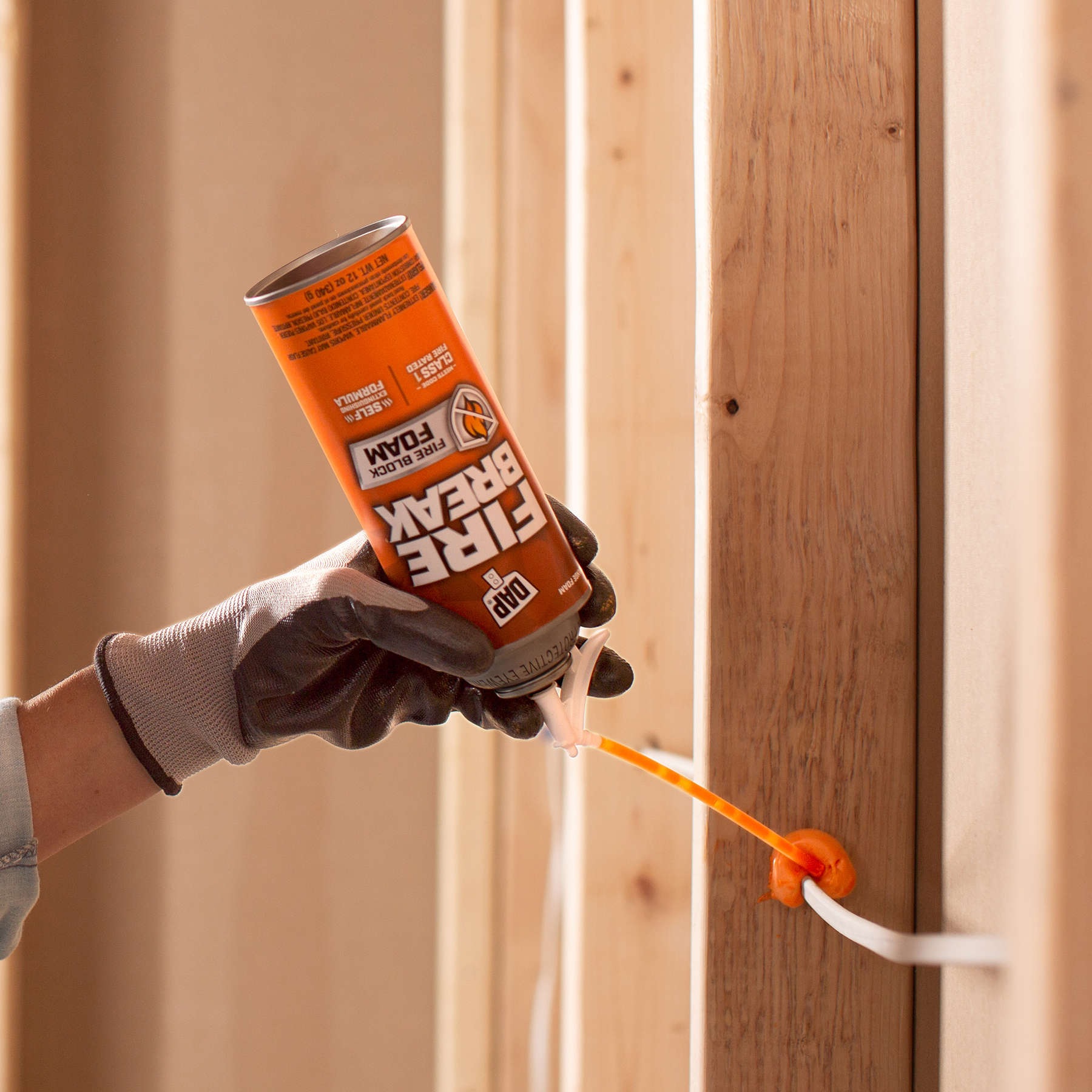

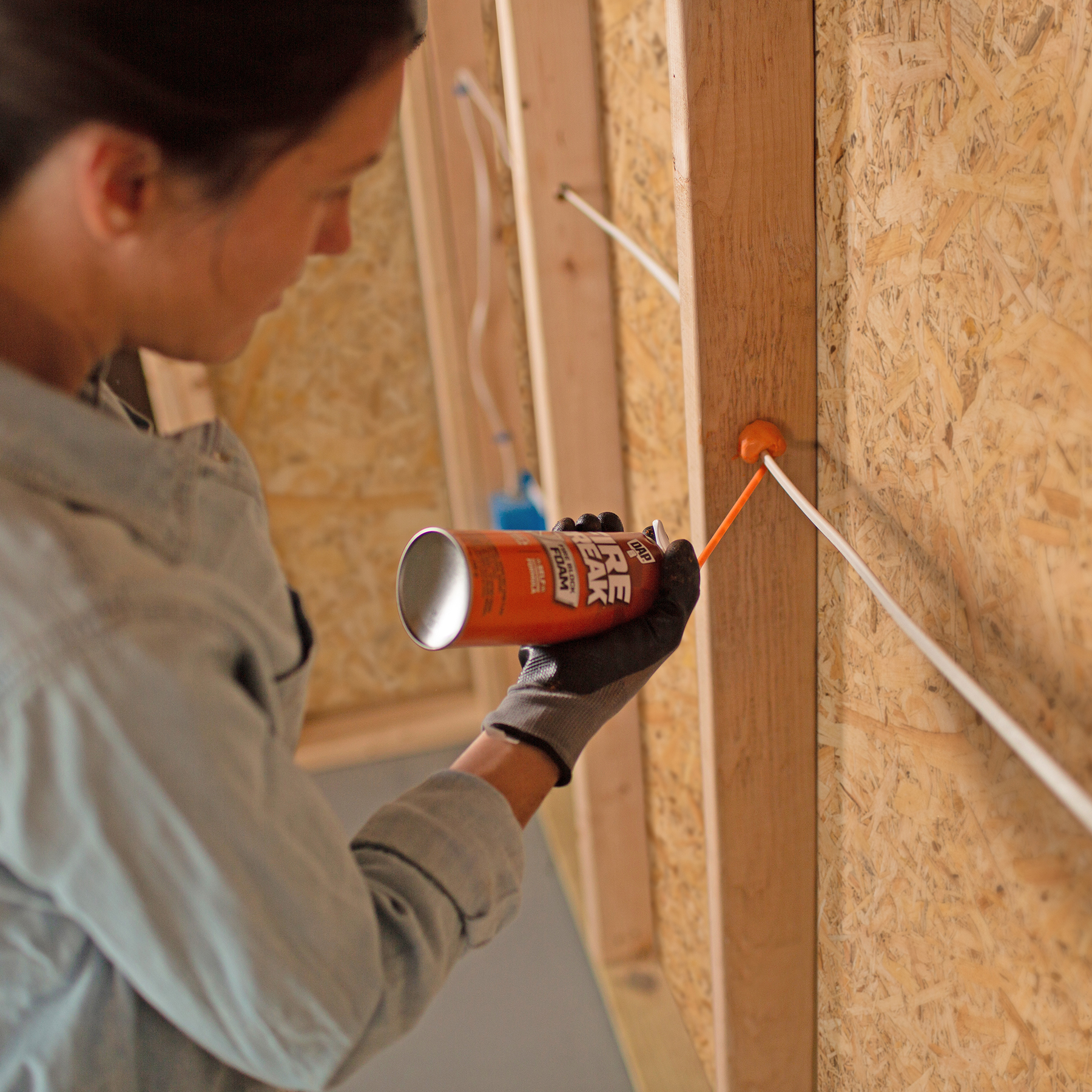

Ideal for HVAC, plumbing, and electrical gaps and joints.
DESCRIPTION
Fire Break is a flame-resistant, all-purpose, Class 1 fire-retardant foam sealant designed to exceed industry testing standards and provide fire protection in high-risk areas. Its self-extinguishing formula works by eliminating oxygen flow through service penetrations, critical points where fire can spread rapidly. Fire Break effectively fills and seals gaps in HVAC, plumbing, and electrical penetrations, as well as joints, partitions, stud walls, stair stringers, soffits, and drop ceilings. It blocks air infiltration to reduce flame spread within walls and ceilings and is V-0 rated for the UL94 Flammability Test. It also delivers excellent performance in UL-175 and modified ASTM E-814 evaluations. Bright orange foam color ensures easy identification after application, and the can includes a stop-and-restart adapter plus an extra straw for reusability across multiple projects. Ideal for professional and residential use, Fire Break should be applied in temperatures between 60 and 100 degrees Fahrenheit for optimal results. Interior or exterior use.
Highly Adhesive
Foam is highly adhesive, and dried foam is very difficult to remove.
Wear gloves, eye protection, a hat and work clothes
Wear gloves, eye protection, a hat and work clothes.
Cover Areas
Cover any areas you do not want exposed to foam.
Use Drop Cloths
Use drop cloths when working with polyurethane foam.
Read all instructions on package
Read all instructions on package.
Prep the Surface
Make sure surface is free of oil and dirt.
Requires Some Humidity
Polyurethane foam sealants require some humidity in order to cure properly. For best results, apply in temperatures between 60-100°F (16-38°C). Allow foam to cure fully before replacing baseboards, window or door frames.
Shake the Can No More than 30 Seconds
Shaking for more than 30 seconds may result in less foam yield.
Always Test Application
Always test application on scrap material first. Release trigger before reaching end of gap as foam continues to dispense for several seconds after trigger is released.
Do Not Overfill Gaps
Do not overfill gaps – fill gaps 1/3 full, allow room for foam to expand
Clean Spills Immediately
Clean spills immediately (before foam dries) with acetone or nail polish remover containing acetone. DO NOT USE WATER. Do not attempt to remove cured foam with solvents. Cured foam wears off and is not harmful to health.(moisture helps to cure foam).
Paint Outdoor Applications to Avoid Discoloration
Wait until foam is rigid before painting or trimming (30-60 minutes). Landscape foam is UV resistant and will not discolor or break down in sunlight.
For Reusable Dispensing
For reusable dispensing, leave straw attached, folding over and attaching to white knob on dispensing trigger.
Store Aerosol Can Upright
Store aerosol can upright to avoid propellant leakage prior to use.
Unlike caulking materials and other sealants that are solid, heavy and non-insulating, foam sealants expand to form an outer skin that contains closed air cells that provide an effective barrier against energy loss. DAP Foam forms a permanent seal that will not shrink or pull away from the material it has bonded to, making foam the best sealant available against air and moisture infiltration.
Yes. DAP Foam sealants meet the criteria of flame / smoke spread to be classified as a Class A foam. While these sealants are fire retardant (self-extinguishing when flame is removed), they are not intended to be used a fire barrier or fire stop.
DAP Foam sealants are water-resistant, however they are not intended for use in submerged/below-waterline applications.
No, DAP Foam insulating sealants are formulated to fill cracks, gaps and small voids. The project requires ventilation and humidity to cure. Larger voids may not allow enough air or moisture penetration for proper curing. DAP Foam products should not be used in any closed cavity that limits air/moisture exposure or the ability of the product the free rise (expand).
We recommend Landscape Foam for exterior applications. Landscape will not discolor or break down in sunlight like other foams. It is plant and fish safe, and the dark color blends into shadows well. MaxFill and Home Seal formulas may also be used indoors or outdoors. These foams should be painted when used outside in order to prevent discoloration and break down from UV exposure. DAP Foam can be painted in about one hour after dispensing. Touch 'n Foam No Warp, Fire Break and Mouse Shield should be used indoors only.
To store unused portion, bend straw back & attach to the knob atop the dispensing trigger. Store can upright below 90°F & above freezing temperature. Never store DAP Foam in your vehicle.
DAP Foam is reusable for up to three weeks after initial use. To store unused portion, bend straw back and attach to the knob atop the dispensing trigger. Store can upright below 90°F. Reuse product within three weeks. To re-use, cut the end off the straw (removing any cured foam), shake well and apply as directed.
Application surface must be clean, dry and free of all foreign material.
